The CK61100E/125E/140E/160E series of large CNC lathes feature semi-closed-loop control. With a load capacity of up to six tons, these machines are suitable for machining complex-shaped shafts, sleeves, and discs, including turning inner and outer cylindrical surfaces, conical surfaces, arcs, end faces, grooving, chamfering, and threading.
Key Structural Features:
1. Bed: Monolithic box-type structure cast in one piece from high-grade cast iron (HT300), with a 755mm-wide guideway surface.
2. Headstock: Designed for heavy-duty machining. Gears undergo high-frequency quenching and precision grinding, ensuring high accuracy, smooth operation, and low noise. Large-diameter spindle supported by precision heavy-duty bearings in a three-point configuration ensures stable rotation for both heavy-duty and precision turning. Capable of stepless speed variation and constant linear speed cutting.
3. Feed: Precision-ground ball screws in X and Z axes guarantee high machining accuracy, positioning precision, and dimensional stability.
Longitudinal (Z-axis) Feed: Models 1000-6000 utilize an AC servo motor mounted on the left side of the feed box, driving the ball screw feed via a high-precision planetary gear reducer. Models above 6000 employ rack-and-pinion feed transmission. The machine tool delivers high positioning accuracy and repeatability.
Product Parameter
| Unit | CK61100E | CK61125E | CK61140E | CK61160E | |
| Capacities | |||||
| Swing over bed | mm | 1000 | 1250 | 1400 | 1640 |
| Swing over carriage | mm | 630 | 880 | 1030 | 1250 |
| Max.length of workpiece | mm | 1000 1500 2000 3000 4000 5000 6000 7000 8000 | |||
| Max.turning length | mm | 730 1300 1800 2800 3800 4800 5800 7800 9800 | |||
| Pan of guideway | mm | 755 | |||
| Spindle | |||||
| Spindle nose | mm | A2-15 | |||
| Spindle bore | mm | 130 | |||
| Taper hole of spindle | 1:20/140 | ||||
| Range of spindle speeds | r/min | 3.15-315 | |||
| No.of spindle speeds | Hydraulic automatic four-speed transmission with stepless shifting within each gear | ||||
| Center height from bed | mm | 500 | 625 | 700 | 820 |
| Chuck | mm | Four Claws 1000 | |||
| Feed | |||||
| Min.feed increment | mm | 0.001/0.001 | |||
| Rapid speeds | mm/min | 3000/5000 | |||
| Max.travel of X | mm | 570 | 630 | 700 | 630 |
| Turret | |||||
| Turret working position | V4(Optional V6/V8 electric tool holder) | ||||
| Indexing time | s | 2.6 | |||
| Indexing repeatility | mm | 0.011 | |||
| Section of tool shank | mm | 40X40 | |||
| Tailstock | |||||
| Dia. of tailstock quill | mm | 160 | |||
| Travel of tailstock quill | mm | 300 | |||
| Taperhole of tailstock | Morse6 | ||||
| Others | |||||
| Workpiece accuracy | IT7 | ||||
| Surface roughness | μm | Ra1.6 | |||
| Main power | kw | 30 | |||
| Lathe mass | kg | 9200 9800 10700 11600 12500 13500 | |||
| Length | mm | 4800 5300 6300 7300 8300 9300 | |||
| Width | mm | 2530 | |||
| Height | mm | 2300 | 2600 | 2600 | 2600 |
Product Details

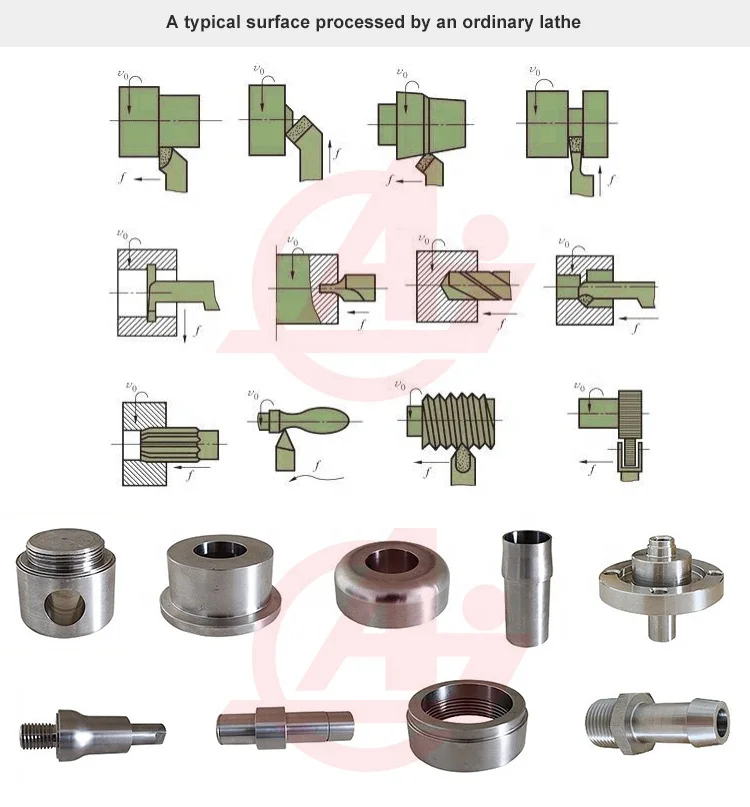

A typical surface processed by an ordinary lathe
