Products Description
CNC Horizontal Lathe is a high-precision, high-efficiency automated machine tool, a type of CNC lathe, with its spindle axis arranged horizontally. It is controlled by a computer numerical control system (CNC), driven by a servo motor and a ball screw, has high positioning accuracy, can realize automatic feeding, processing, tool replacement, and improve production efficiency.
Advantages
1. Strong bearing capacity
CW6163B adopts a horizontal structure design, with a bed width of 550mm, and has good rigidity and anti-vibration performance. This design helps to effectively offset the vibration caused by cutting force during processing, ensuring the stability and dimensional accuracy of the workpiece during processing.
2. Powerful spindle system
The equipment is equipped with a spindle motor with a power of 11kW, and the spindle speed range is 7.5 to 1000 rpm, covering a wide range of application scenarios from low-speed heavy load to medium- and high-speed precision processing. Users can flexibly select the speed according to the workpiece material and process requirements to achieve efficient cutting efficiency and high surface quality, thereby improving the overall processing efficiency.
3. Flexible voltage design
The electrical system design of CW6163B takes into account the differences in power standards in different regions, and the voltage can be customized according to customer needs (such as 380V, 415V, etc.). This flexibility makes it easier to deploy in the international market, reduces the need for customers to transform the power supply in the early stage of use, and improves the adaptability and practicality of the equipment.
4. Equipment size and load optimization design
The overall size of the machine is 5700×1900×1900 mm and the weight is 5000 kg, which reflects that the machine tool focuses on the balance between load capacity and processing stability in structural design. The larger deadweight can effectively suppress the vibration of the machine tool during operation, which is conducive to improving processing accuracy.
Product Parameter
| range of spindle speed(r.p.m) | 7.5 - 1000 r.p.m |
| type | Horizontal |
| spindle motor power(kw) | 11 |
| voltage | Customer's Requirement |
| weight (kg) | 5000 KG |
| warranty | 1 Year |
| width of bed (mm) | 550 |
| place of origin | China |
| brand name | Anyang |
| model number | CW6163B |
| dimension(l*w*h) | 5700x1900x1900 |
| key selling points | Flexible Manufacturing |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| Name | Big Bore Metal Turning Heavy Lathe Machine Horizontal Type |

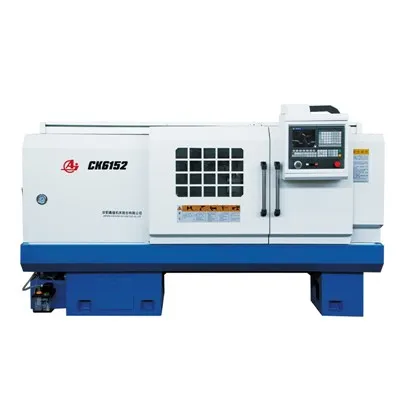

Our Products
Machining Requirements
1
High-Precision External Cylindrical and End-Face Machining:CNC horizontal lathes consistently achieve high dimensional accuracy and low surface roughness for external cylindrical, stepped, and end-face machining, meeting the demands of precision mechanical components.
2
Bore and Sleeve Component Machining: Horizontal lathes are well-suited for machining parts requiring high-precision bores, such as bearing sleeves, hydraulic cylinder barrels, and bushings.
3
Thread Machining: This lathe can machine metric, imperial, trapezoidal, and tapered threads with excellent consistency and high precision.
4
Complex Contour and Formed Surface Machining:Utilizing the interpolation capabilities of the CNC system, it can machine complex shapes like arcs, curved surfaces, and eccentric components.
5
Deep Hole Machining: Equipped with deep-hole cutting tools and an appropriate cooling system, it can machine holes with a high depth-to-diameter ratio.
6
Batch and Automated Machining: Horizontal lathes can be integrated with automatic feeders, robotic arms, gantry systems, and other equipment to achieve unmanned, continuous production, thereby enhancing efficiency.
7
Machining of Difficult-to-Cut Materials: Suitable for materials like stainless steel, titanium alloys, and high-temperature alloys requiring high-rigidity machines and stable cutting performance.
8
Small-Lot, Multi-Variety Production: Quickly switches between different parts with minor program modifications, meeting modern flexible manufacturing demands.
9
High-Precision Positioning and Repeat Machining: Ideal for parts demanding high consistency, such as automotive components, motor shafts, and precision mechanical parts.
Our Services
Our Services
Our company build perfect service system in order to improve product quality and customer satisfaction. We follow the tenet service for customers, responsible for customers, satisfy customers. We supply before sale, in sale and after sale service.
